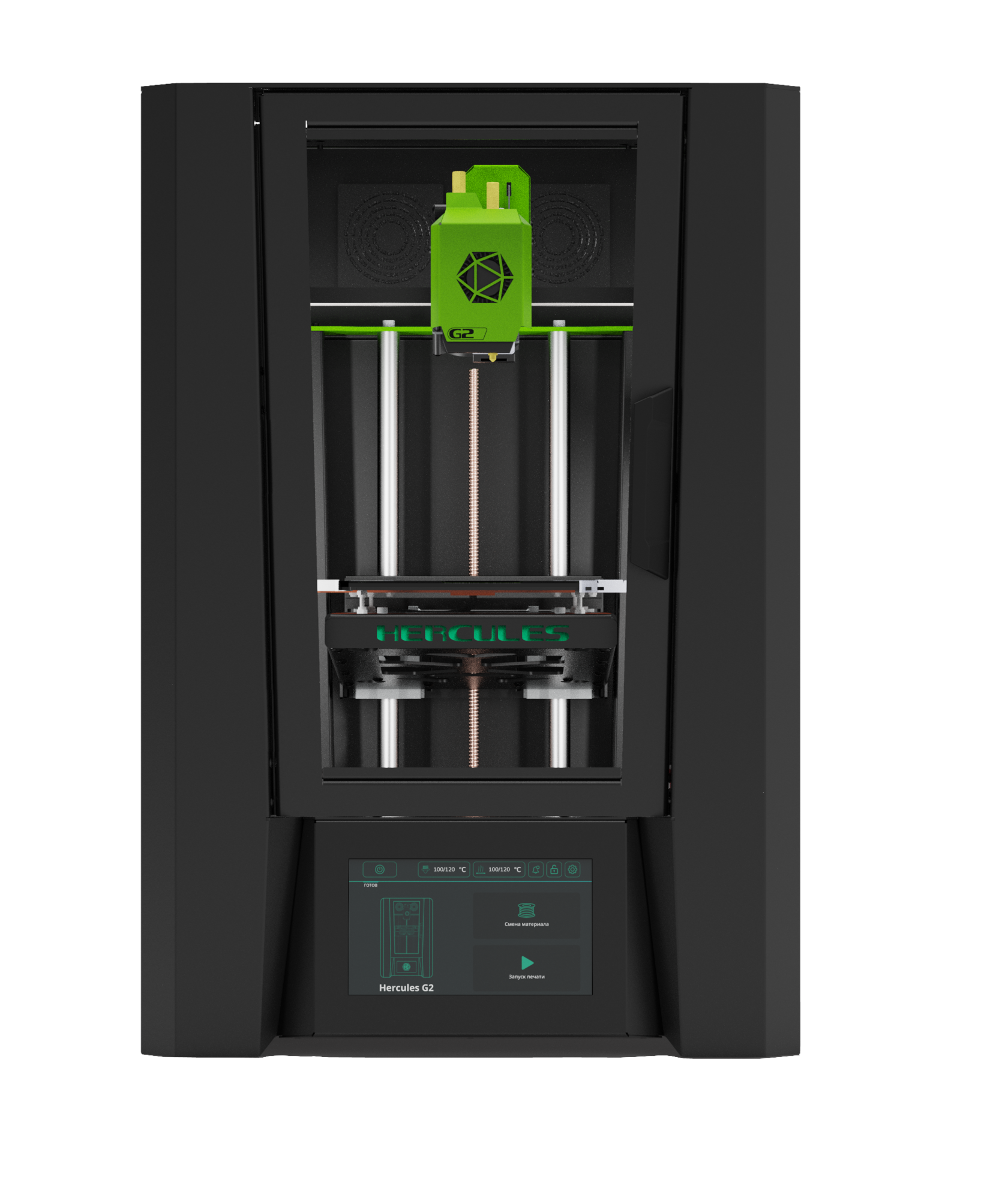

Hercules G2

All New
Hercules G2

Hercules G2 is a powerful professional 3D printer, designed to deliver large-scale parts with industrial-grade materials, thanks to features such as its passive heated chamber and full enclosure. Powered by our UniHot v3 system, the Hercules G2 delivers exceptionally strong functional parts with quality and precision.

Where to buy

Download specifications

Примеры изделий, сделанных в Hercules G2

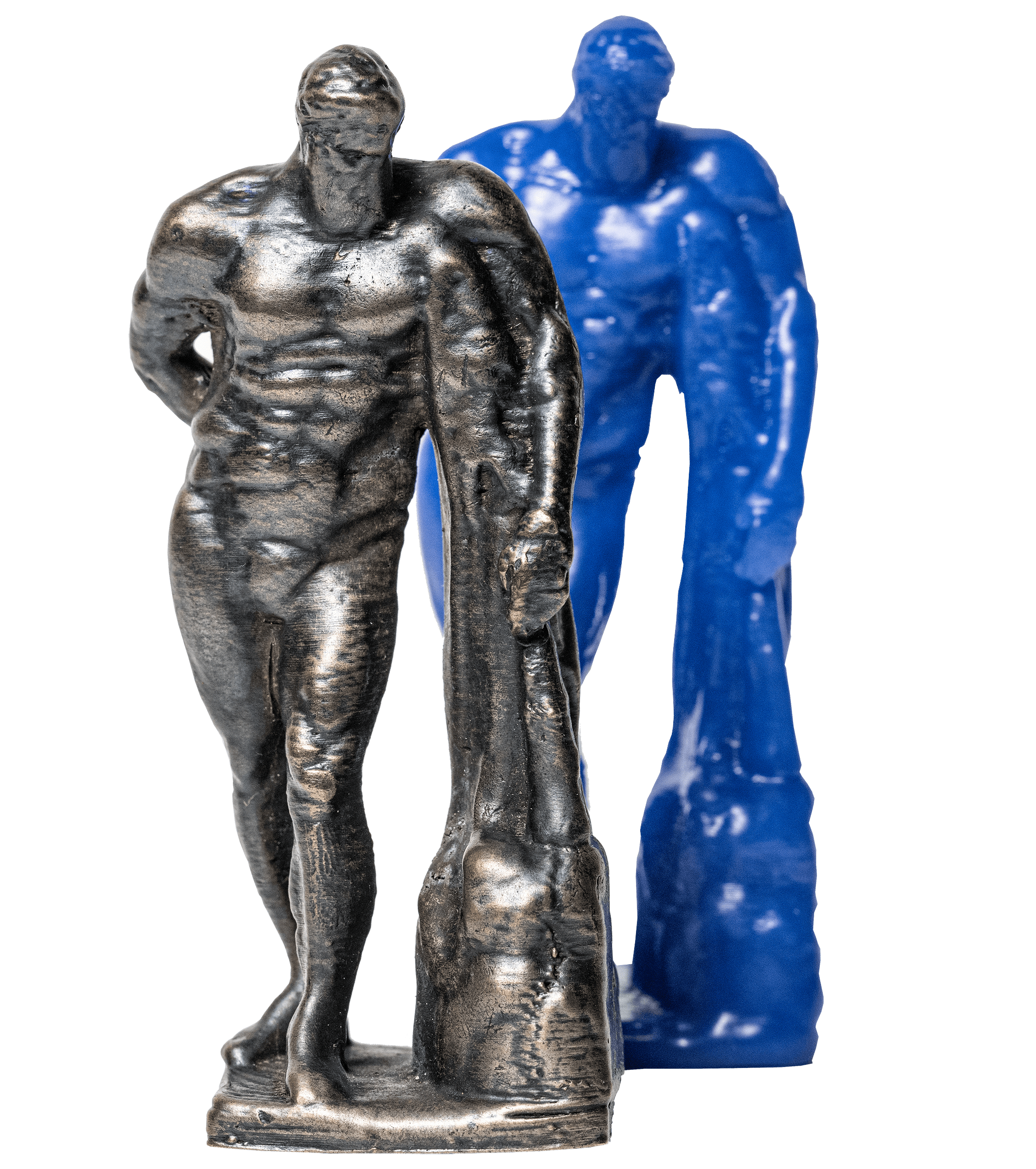

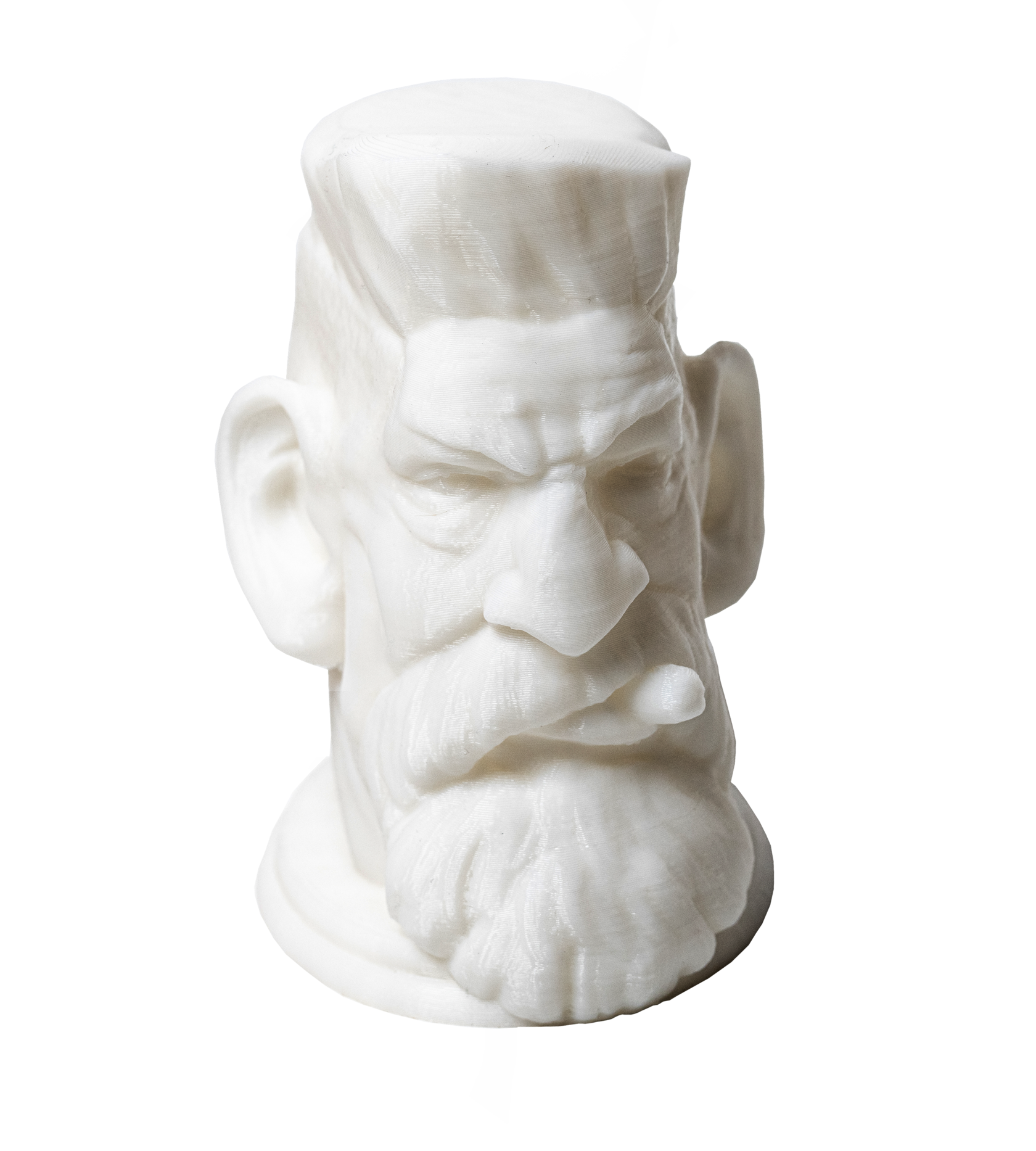

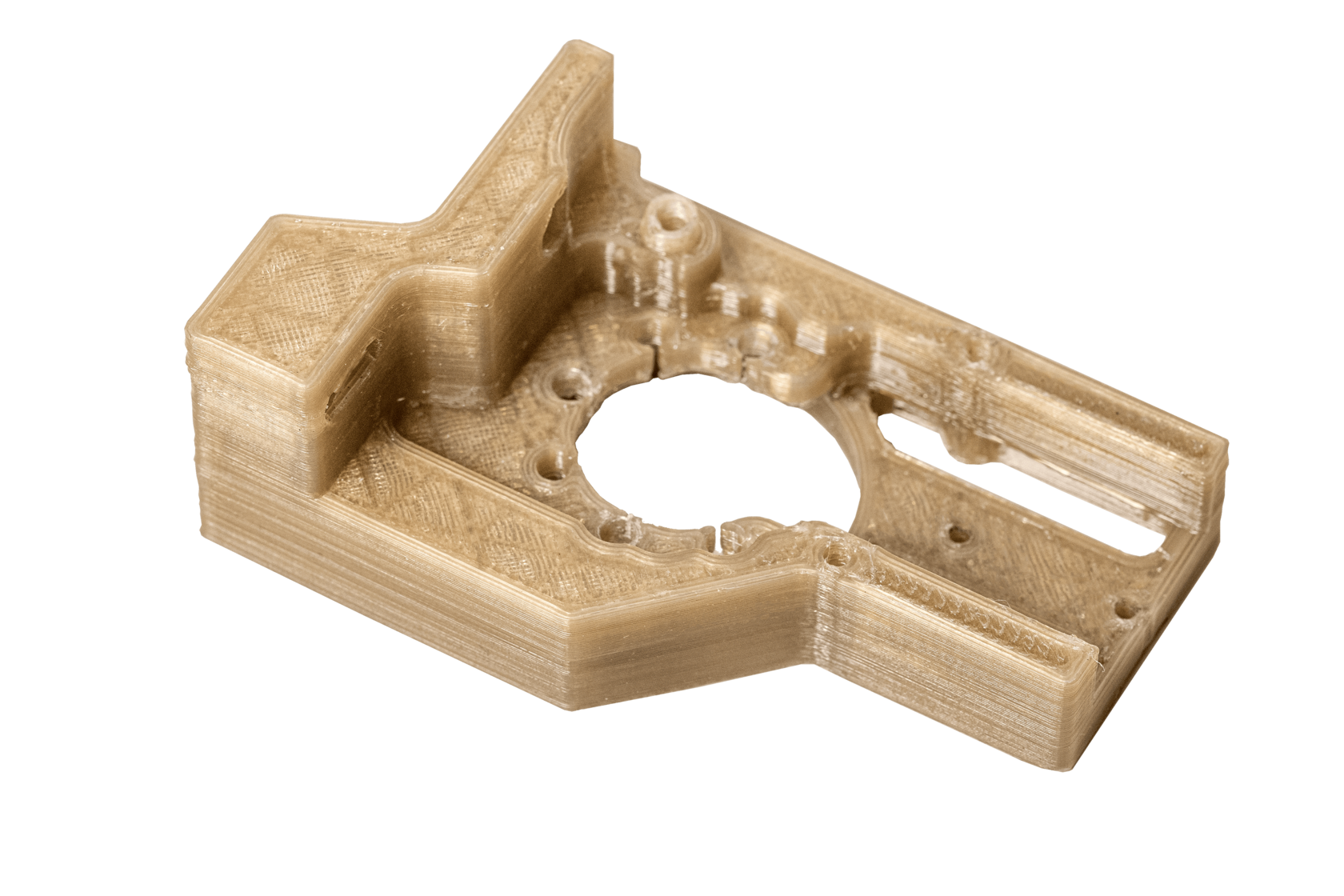

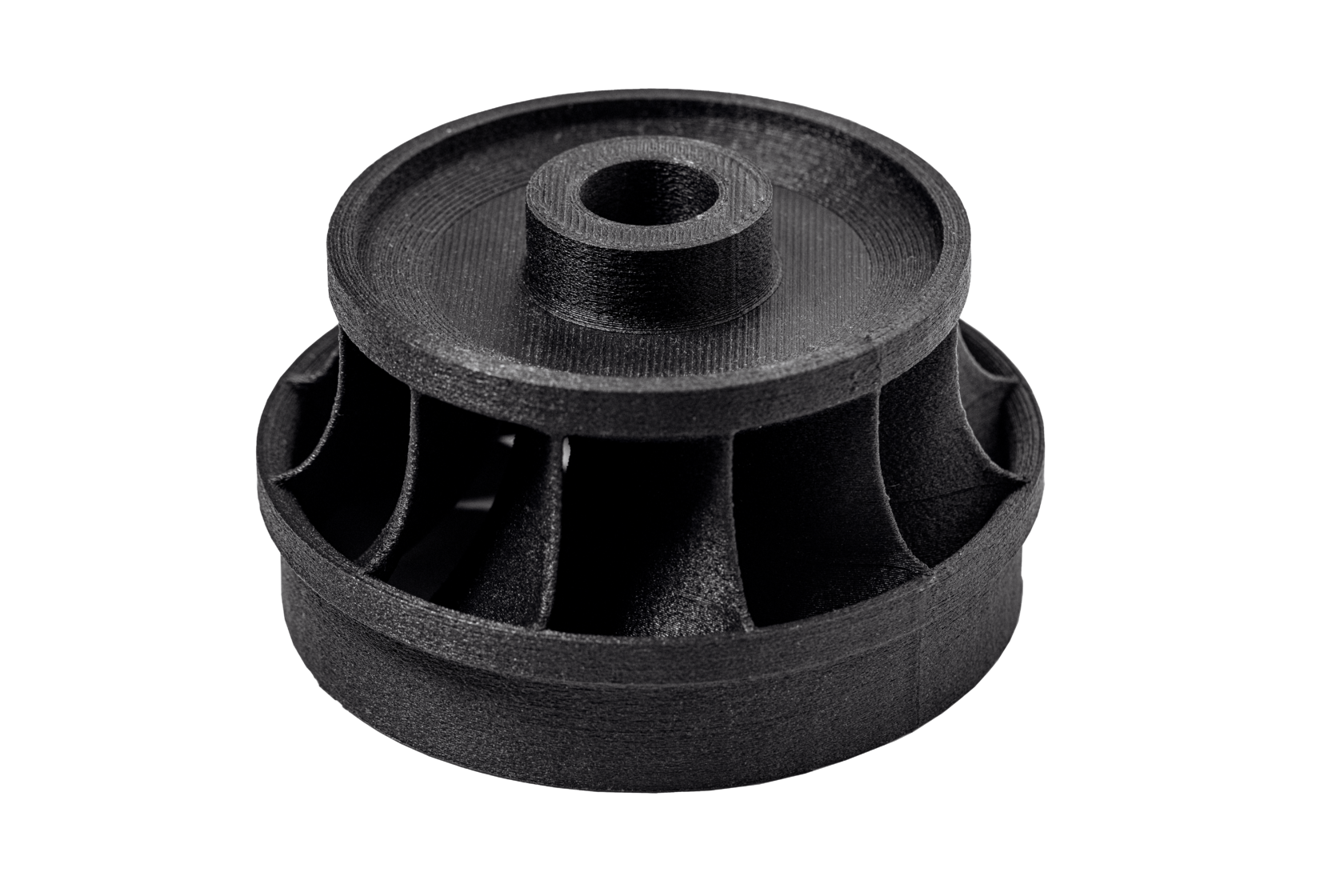

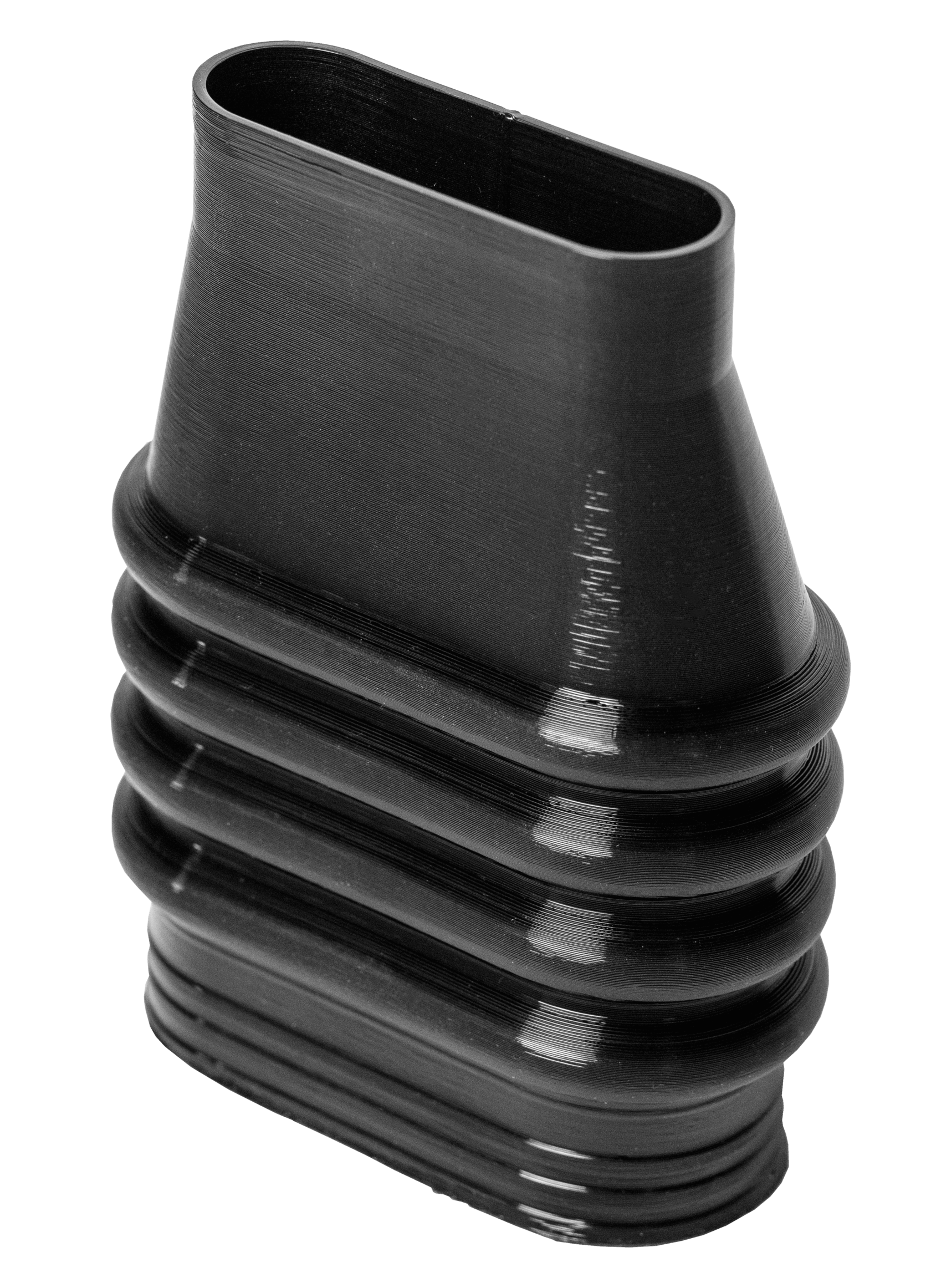

3D printing samples

Powered by Hercules G2

Габариты

190 х 110 х 150 мм

Материал

Ultran 1010

Время печати

45 минут

Highest quality
3D printing

with 0.1 mm layer

We have selected components that work together to ensure consistent print quality from part to part.

Start dozens of parts in production and be sure of the result.

Get a quote

Full-metal
Extruder

Hercules UniHot v3.0

The extruder does not overheat at high temperatures. The print quality does not deteriorate over the operating time of the printer.

Double sided
cooling

Safely adjust the pressure for different plastics with handy labels and numbers.

Filament clamping
system

Use professional materials: PEEK, PEKK, PA, as well as more than
40 types of materials with heat resistance up to 250 degrees

Heats up to
410 °C

01

PEEK, PEKK, Ultem 1010, FormaX, ABS, PLA, HIPS, PVA, ULTRAN, UltraX, ASA, ABS/PC, PET, PC, FRICTION, CAST, RELAX, ETERNAL, FLEX, RUBBER, SEALANT, PETG, AEROTEX, CERAMO, WAX, SBS, SBS PRO, PROTOTYPER SOFT, PRO-FLEX, TOTAL PRO, NYLON, TPUD70, TPUA85, Total GF-30, Titan GF-12, Flex Soft, Flex Medium, Flex Spring, Flex Hard and others.

Replaceable nozzles for borderless printing

Hercules G2

Print models in high detail. Get perfectly smooth surfaces. Copies of parts will exactly repeat each other.

0,01 mm layer hight

Use nozzles with a diameter of 0.2 to 1.2 mm for dozens of materials. Save time with productivity up to 100 cm3 per hour.

Save time

The included titanium nozzles let you print with composites and high temperature materials right out of the box.

No restrictions

02

Work with materials and spools from most manufacturers - the most popular 1.75mm filaments are used for printing.

Any material
manufacturers

Perfect technical
equipment

And powerful stuff

High printing speed is achieved due to the linear speed of movement of the head during printing up to 125 mm/ s

Get a quote

Wide horizons
for work

With a modest size and weight of 29.5 kg

Functional design frees up desk space. The robust, closed housing
provides rigidity and:

Makes optimal temperature inside
the case

01

Reduces shrinkage for some materials

02

Protects people and pets
from accidental injury

03

Protects assemblies and products from dust, debris, drafts and shock

04

Glass walls allow you to
observe the printing process

05

It can be pulled out together with the part in order to then easily remove the part in a convenient place. For example, on the table.

Glass substrate

The bed ensures even cooling of the part. Plastic does not peel off, does not come off

Heated bed up to 150 ° C

616 мм

420 мм

616 мм

Technologies to save
your time

Convert the model into a print job and send it to print remotely from a computer, smartphone or from the cloud using the web version of the service.

DiaPrint Cloud & PC

No need to manually set up printing for each material

Ready to print profiles

Supports the most common print file format

gcode

Create farms from Hercules 3D printers for mass production.

3D printers Network

Smart technology

Protects against large particles with a diameter of more than 12.5 microns. The product does not get dust, due to which the print quality is higher.

Replaceable air filter

For secure 3D printing

The systems will instantly stop printing and inform you if the product is deformed, the plastic has run out or the nozzle is clogged.

Sensitive PROCheck

Allows you to monitor the printing process, record it in Full HD 1080P video and instantly upload it to the cloud for further analysis or sharing on the network.

Web-cam

Protects against network overloads - the printer will not burn out from power surges.

Fuse 220V
